Nano UV-VIS Photometer

    Kindly download Analysis Request Form and Safety Data sheet and submit the hardcopy of filled sheet along with your sample


  Facility Details

Make : Implen
Model : Implen NanoPhotometer NP80
Specification : Wavelength Range - 200 to 900 nm
  Polychromator
  Light Source – Xenon flash lamp
  Measure Time for full scan range- 3.5-6.0 seconds
  Wavelength Accuracy - ± 0.75 nm (N50: 1.5 nm)

   Working Principle

Ultraviolet-visible (UV-Vis) spectrophotometer is used to quantify and qualify samples by the means of UV and visible light (mainly 200 to 900 nm). In comparison to the first commercially available UV/Vis spectrophotometer, which has been a monochromatic scanner, the NanoPhotometer represents a new class of UV-Vis spectrophotometer instruments with a polychromatic rather than a monochromatic optical setup.

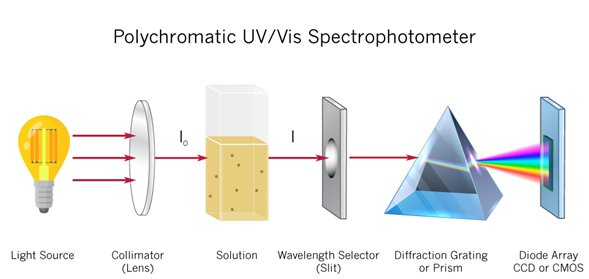

The full spectrum of light produced by a Xenon Flash Lamp is sent through the sample and then separated after it is passed using a polychromator. To record the signals, modern UV-Vis spectrophotometers are utilizing a CCD or CMOS detector (linear camera), which allows to record high-resolution spectra over the entire wavelength range within a few seconds even.


  Key Features

    (i) For Nanovolume

     Detection Range dsDNA           1 – 16,500 ng/µl
     Detection Range BSA            0.03 – 478 mg/ml
     Minimum Sample Size           0.3 – 2 µl
     Photometric Range (10 mm equivalent)      0.02 – 330 A
     Path Length                 0.67 and 0.07 mm
     Dilution Factor                  15 and 140
     Vortex                   2,800 rpm; tube size up to 2.0 ml



    (ii) For Cuvette

     Detection Range dsDNA           0.1 – 130 ng/µl
     Detection Range BSA            0.003 – 3.7 mg/ml
     Photometric Range              0 – 2.6 A
     Center Height (Z-Height)            8.5 mm
     Cell Types                  Outside dimension 12.5 x 12.5 mm
     Heating                    37°C ± 0.5°C



   Optical Specifications

     Wavelength Scan Range           0.1 – 130 ng/µl
     Measure Time For Full Scan Range       0.003 – 3.7 mg/ml
     Wavelength Reproducibility          0 – 2.6 A
     Wavelength Accuracy             8.5 mm
     Bandwidth                  Outside dimension 12.5 x 12.5 mm
     Optical Arrangement               37°C ± 0.5°C
     Lamp                    Outside dimension 12.5 x 12.5 mm


  Contact Us
      CRNTS/SAIF IIT Bombay
      Contact: 022-21593067
      Email Id : manaliv@iitb.ac.in


 Nano UV-Visible Photometer system charges excluding 18% GST

IndustryUniversityNational Lab/R&D'sIIT Bombay Users
Nano UV- Vis spectroscopy 1000/- 150/-450/-75/-Per Sample
